Explore rim designs

Standard rims · current catalog contours

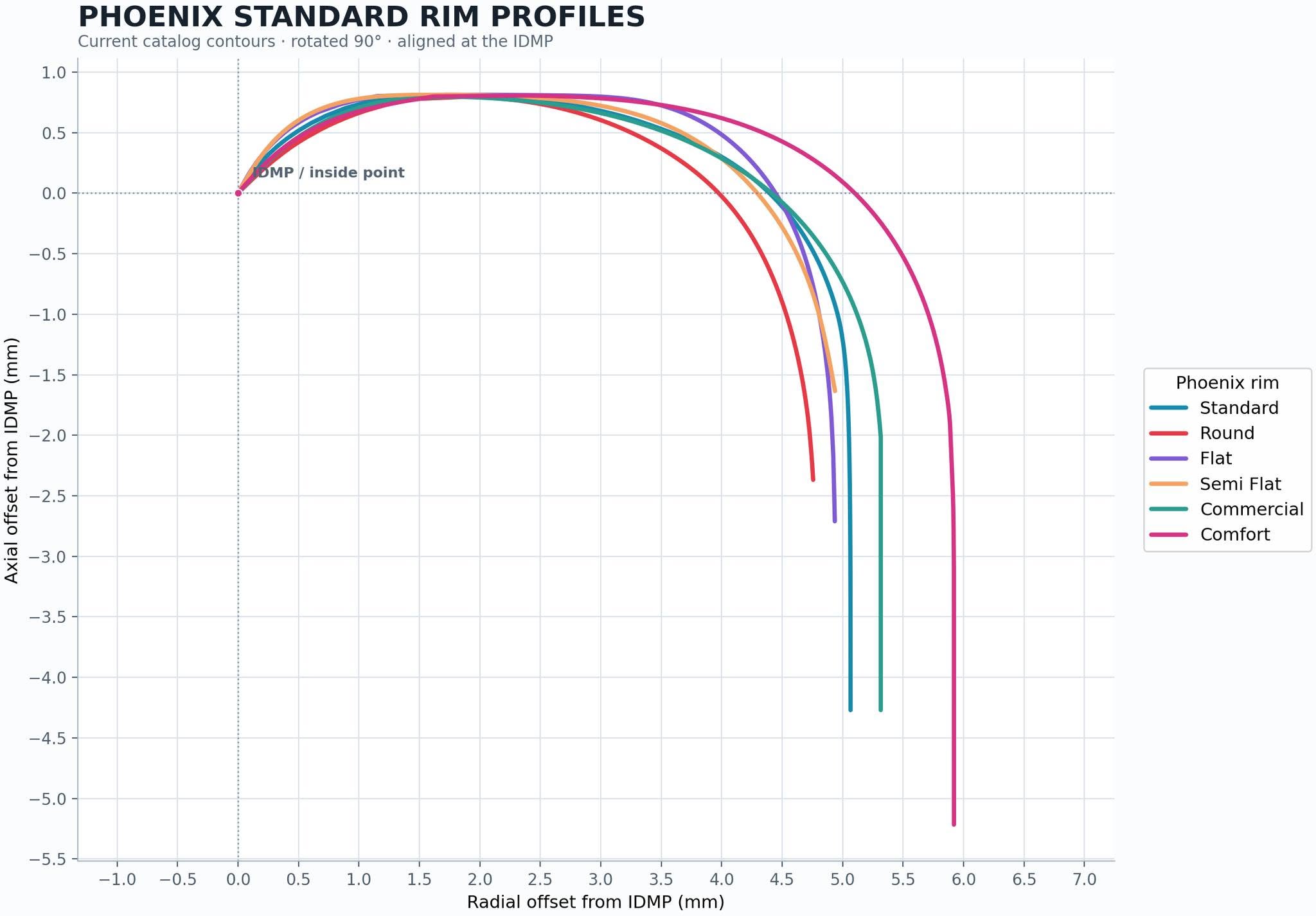

These measured contour comparisons are aligned at the inside point (IDMP). The chart shows the current Phoenix Standard, Round, Flat, Semi Flat, Commercial and Comfort profiles.

Chart of current Phoenix Brass standard rim contours, rotated 90 degrees and aligned at the inside point (IDMP). It compares Standard, Round, Flat, Semi Flat, Commercial and Comfort profiles by radial and axial offset in millimetres.

Asymmetric · Interactive 3D comparison

Explore each treatment on the Phoenix Standard rim and cup. Both models turn together so you can compare the same view. Changes are shown at actual size, with an option to exaggerate them for clarity.

Rim treatment Banana side contour

Standard rim

Banana rim

Changes shown at actual size · 0.70 mm offset

Drag to rotate · Pinch or scroll to zoom · Player view shows upper lip at the top
